440134-1
Manufacturer:
TE Connectivity
Mfr.Part #:
440134-1
Datasheet:
Description:

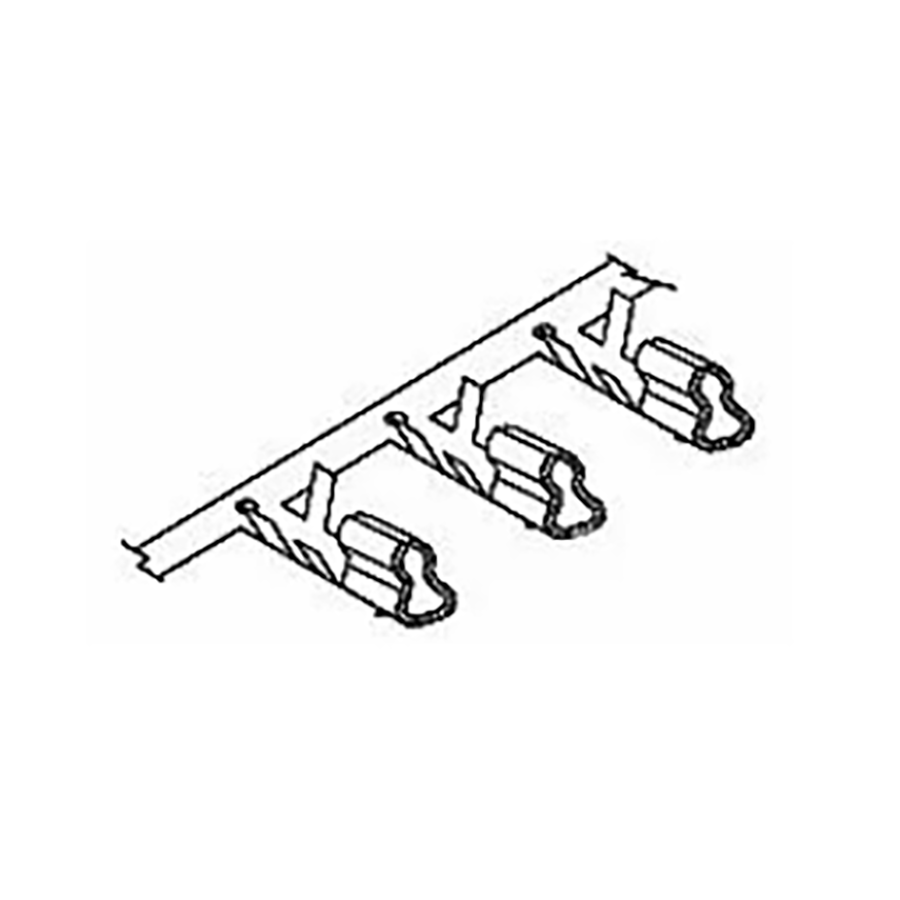

Headers and Wire Housings Cable Socket Pitch:2.5 mm
| Parameter | Value |
|---|---|
| Length | 5.8 mm |
| Termination | Crimp |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -25 °C |
| Height | 2.75 mm |
| Packaging | Reel |
| Depth | 2.9 mm |
| Radiation Hardening | No |
| RoHS | Compliant |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Phosphor Bronze |
| Pitch | 2.5 mm |
| Current Rating | 3 A |
| Orientation | Straight |
| Operating Supply Voltage | 250 V |
| Lifecycle Status | Production (Last Updated: 2 weeks ago) |
| Gender | Socket (Female) |
| Shielding | Unshielded |
| Connector Type | Socket |
| Wire/Cable Gauge | 28 AWG to 22 AWG |
| Number of Rows | 1 |
| Wire/Cable Type | Discrete |
| Circuit Application | Signal |
| Connector System | Wire-to-Board |
| Contact Style | Socket |
| Contact Current Rating | 3 A |
| Wire Gauge (Max) | 28 AWG |
| Wire Gauge (Min) | 22 AWG |
| Contact Gender | Female |
| Manufacturer Lifecycle Status | ACTIVE (Last Updated: 2 weeks ago) |
| Sealable | No |
| Termination Style | Crimp |
Stock: 98880
Distributors
pcbx
pcbxUnit Price$0.30694
Ext.Price$0.30694
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.30694 | $0.30694 |
| 10 | $0.15347 | $1.53470 |
| 50 | $0.11805 | $5.90250 |
| 100 | $0.09081 | $9.08100 |
| 500 | $0.06985 | $34.92500 |
| 1000 | $0.05373 | $53.73000 |
| 3000 | $0.04133 | $123.99000 |
| 5000 | $0.03179 | $158.95000 |
| 10000 | $0.02445 | $244.50000 |
| 30000 | $0.01881 | $564.30000 |
| 50000 | $0.01813 | $906.50000 |
